Get dependable power for outages, jobsites and RV trips. The SG3500i 3000W Gas Inverter Generator is built for steady output and long run times when you need backup power most.
US version: built for US 60Hz power with US-standard outlets.
Features:

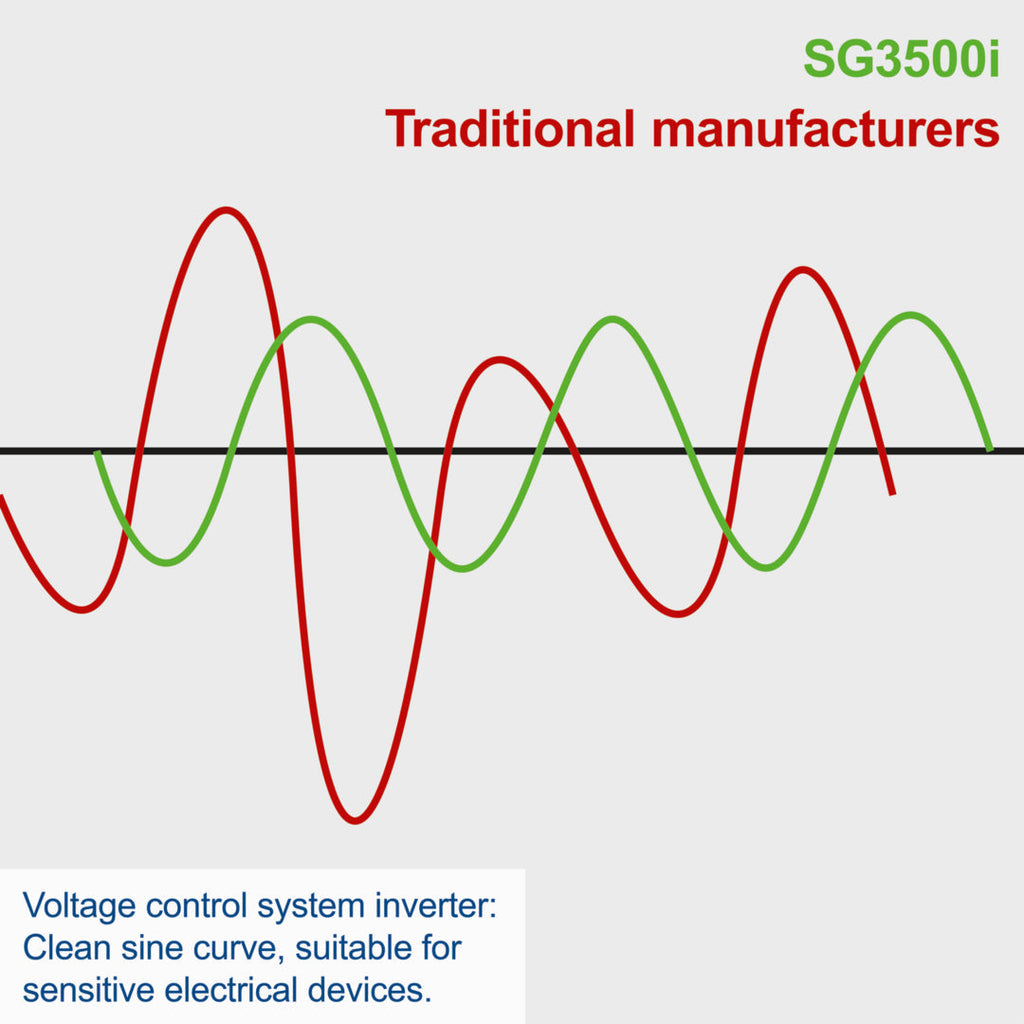

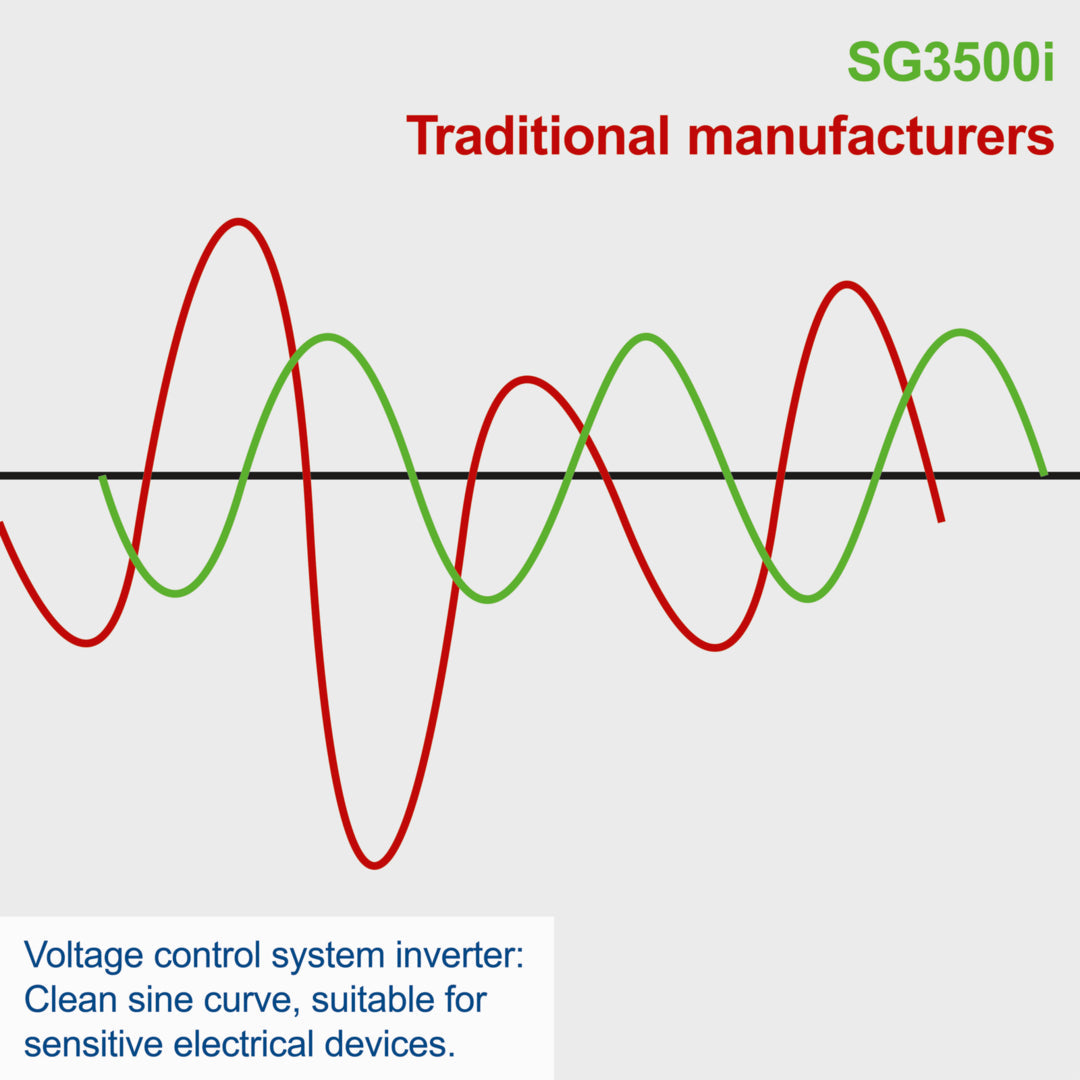

- Clean Sine Wave Inverter Technology: Converts power to deliver stable, clean voltage free from fluctuations, making it safe to run delicate electronics like laptops, tablets, and televisions.
- High Power Output: Provides 3,500 W peak power, 3,200 W maximum output, and 3,000 W rated power to drive site tools, household appliances, and campsite equipment.
- Versatile Power Outlets:Outlets: US-standard 120V receptacles (US version)

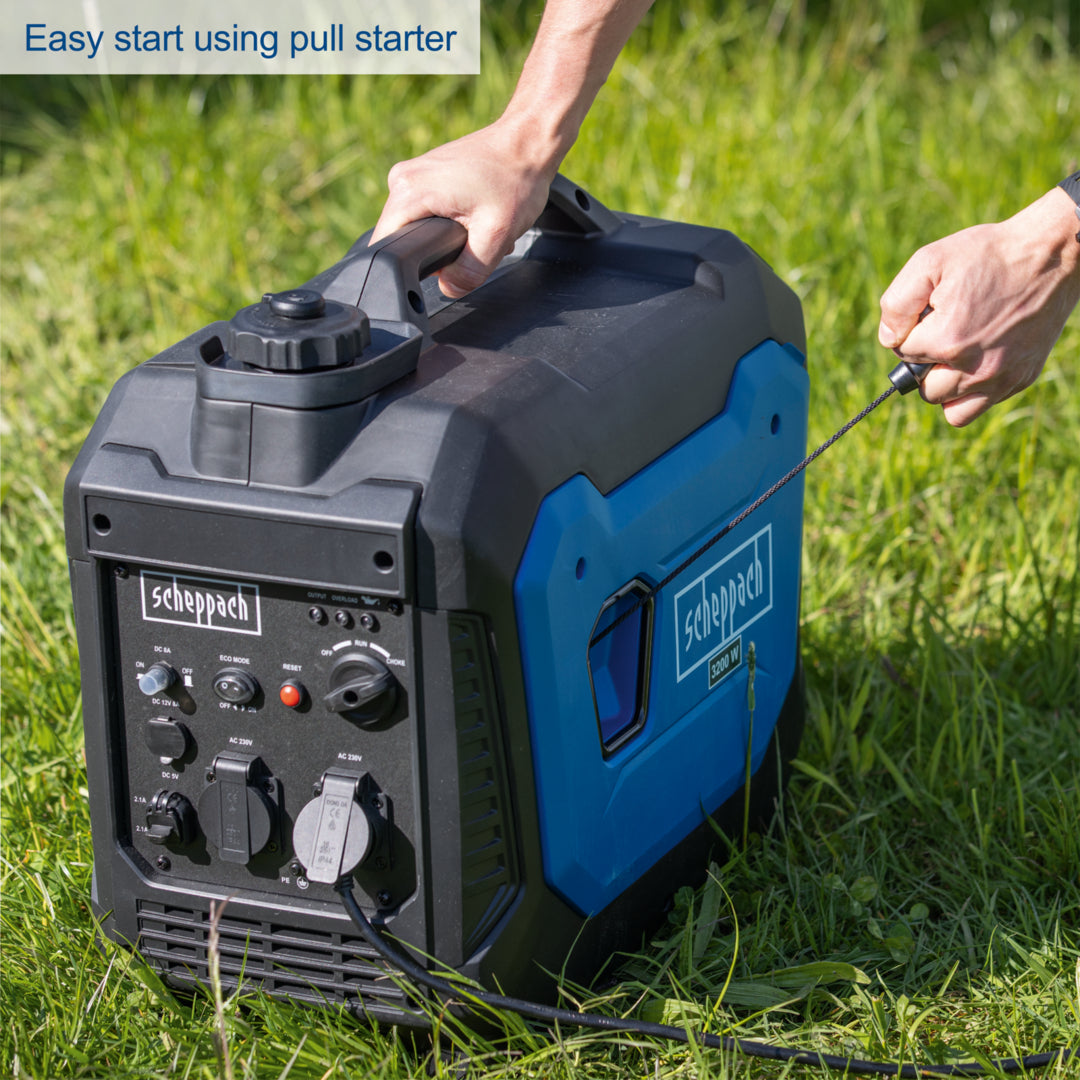

- Efficient 141 cc 4-Stroke Engine: Air-cooled gasoline motor with a smooth pull starter delivers 4.8 hp (3.6 kW) of reliable, economical running power.
- Automatic Energy-Saving Mode: Reduces engine speed to idle automatically when no power draw is detected, lowering fuel consumption and extending overall runtime.
- Low Noise Insulation: Generates a low noise level of just 66 dB(A) at 7 meters, creating a quiet environment for residential areas, events, and campsites.
- Built-In Safety Protections: Includes automatic low oil shutdown to prevent engine damage and an electronic overload circuit breaker for safe operation.

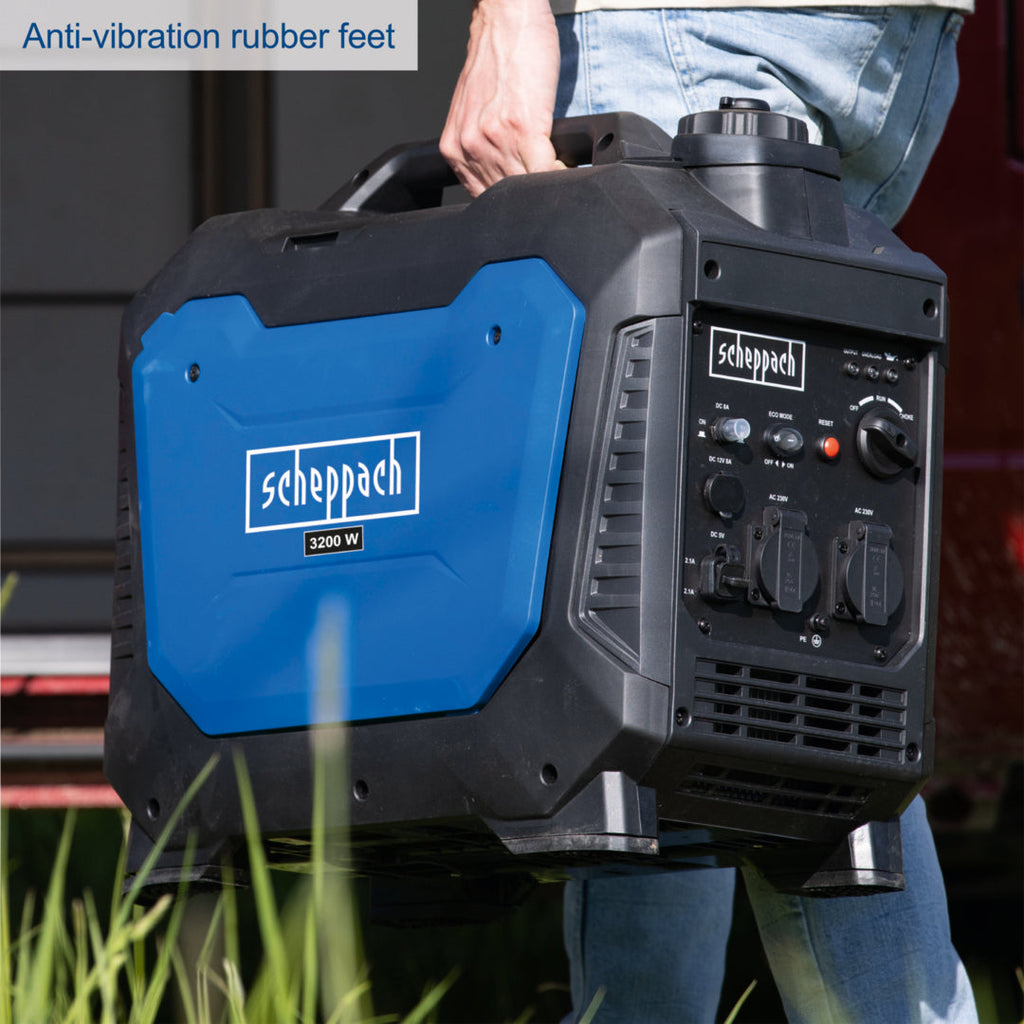

- Compact Suitcase Design: Durable, impact-resistant plastic casing weighs 22.5 kg and features a sturdy integrated carrying handle for effortless transport and stable, vibration-damped placement.
Technical Specification
| General Details | |
|---|---|
| Title | SG3500i Inverter Generator (DIY) |
| Model Description | SG3500i |
| Machine Group | Inverter generator |
| Article Number | 5906230903 |
| EAN | 4046664195221 |
| Net Weight | 22.5 kg |
| Gross Weight | 24.2 kg |
| General Dimensions (L x W x H) | 542.0 mm x 325.0 mm x 490.0 mm |
| Power Generator Specifications | |
| Generator Type | Inverter |
| Maximum Output Power P max. (120V) | 3200.0 W |
| Rated Power (S1) 120V | 3000.0 W |
| Performance Class | G1 |
| 2 pieces / 13.0 A | |
| 0 pieces / 0.0 n/a | |
| 12V DC Connector / Rated Current | Yes / 8.0 A |
| Slot (Type) | EU plug |
| Operating Time (Full Load / Without Load) | 3.6 h / 14.0 h |
| Fuel Consumption (Full Load / Without Load) | 1.78 l/h / 0.46 l/h |
| Startup System | Pulley |
| Overload Protection | Yes |
| Fuel Gauge / Voltage Meter | No / No |
| Engine & Drive Specifications | |
| Drive Type General | Internal Combustion Engine |
| Engine Type / Subgrouping Drive Type | 4-Stroke Engine |
| Engine Displacement | 141.0 cm3 |
| Power Output | 3.6 kW / 4.8 hp |
| Maximum Speed / Engine Idle Speed | 4800.0 1/min / 3300.0 1/min (Idle tolerance: 0.0 n/a) |
| Starter Type | Cable Pull |
| Coolant | Air |

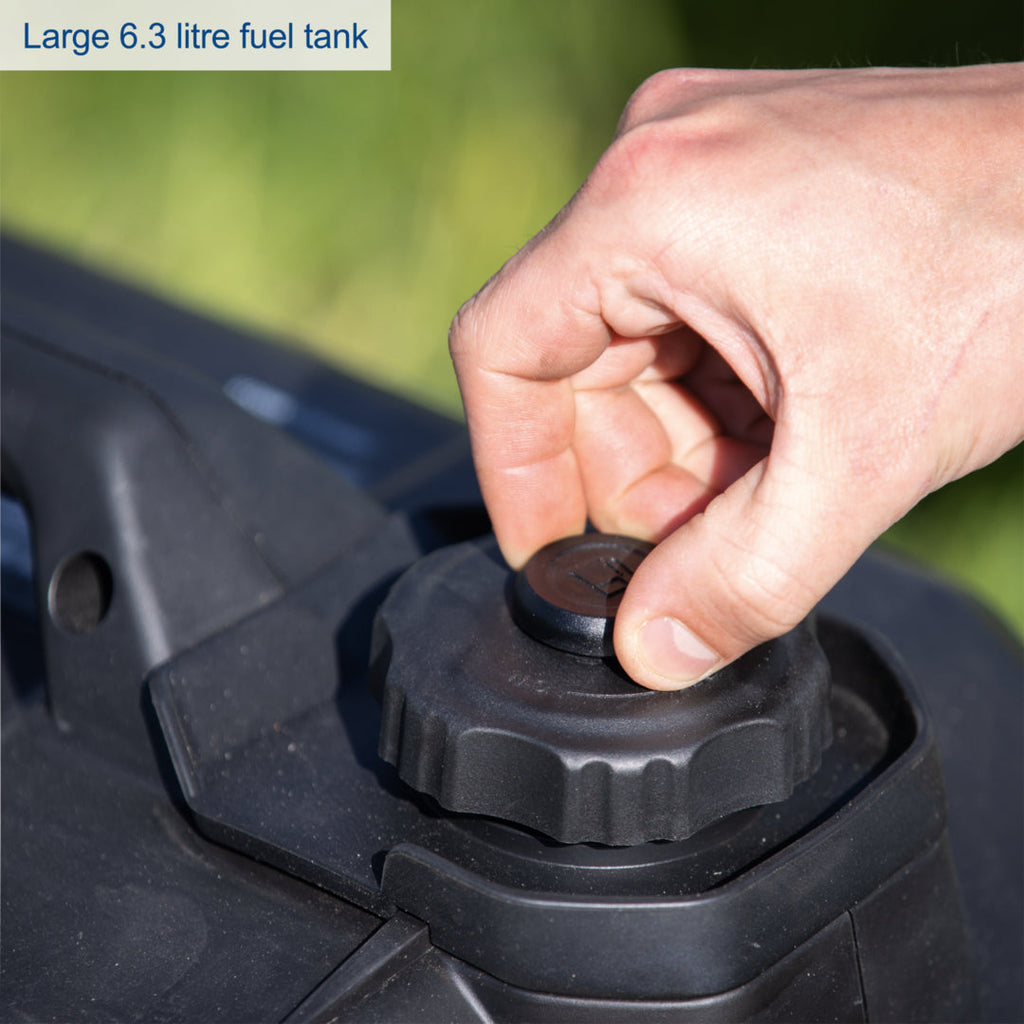

| Fuel Tank Capacity | 6.3 l |
| Octane Rating Min / E10 Suitable | 92 / Yes |
| Engine Oil Type / Quantity / Motor Oil Included | 15W40 / 0.4 l / No |
| Oil/Gasoline Mixture Ratio | n/a |
| Oil Monitors | Yes |
| Spark Plug Type | A7RTC |
| Emission Class | Euro V |
| Scope of Delivery | |
| Comes with | • Inverter generator • Funnel • Spark plug wrench • 12V cable • User manual |
